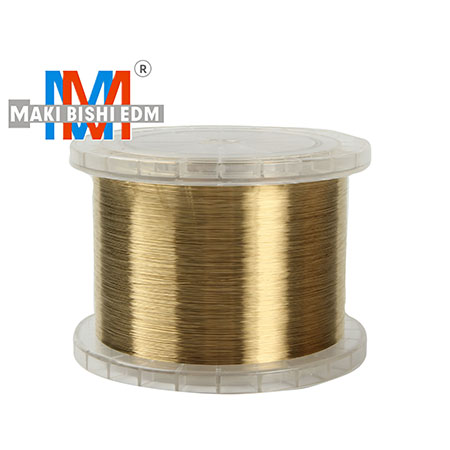

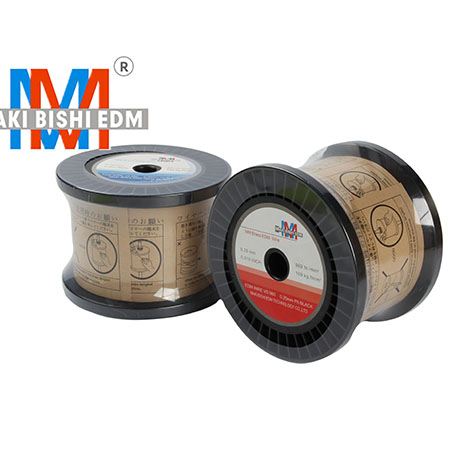

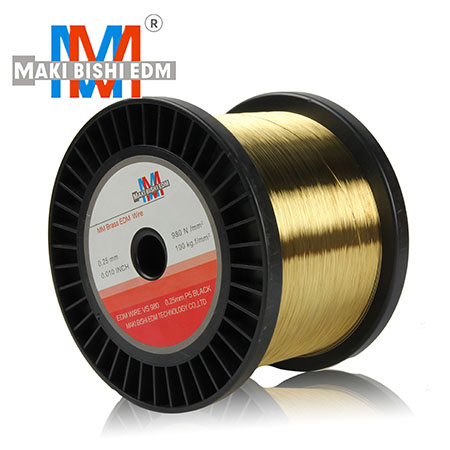

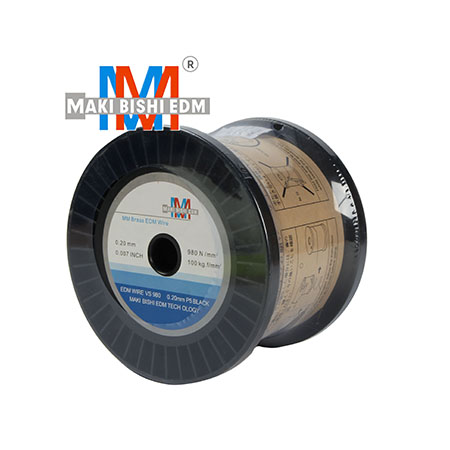

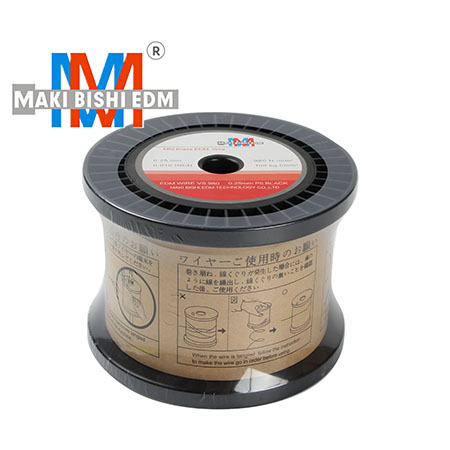

0.15mm Brass Wire
High strength:
Our company uses high-quality raw materials and trace multi-element copper alloys for the production of EDM wires.Follow up the test in front of the furnace for 24 hours to ensure the stability of the chemical composition and the high tensile strength.
Good precision:
EDM Brass Wire with advanced testing instrument,entire manufacturing techniques combining the latest fully automtic wire-stretching machines,complete guarantees precision 1000N/m2 strength,diameter tolerance within +/-0.001mm.
Strict testing system:
Our company has advanced chemical analyzers and physical testing equipment.
Strict quality management system and strict product inspection system to ensure the stable chemical composition of the product, the high tensile strength, excellent surface quality, thereby ensuring the quality of the product .
|
Spool Type |
Spool Materials |
Outside Diameter |
Inside Diameter |
Pore Size |
Lateral width |
Medial width |
Spool/Weight |
|
P3 |
ABS（PS） |
130 |
80 |
21 |
110 |
90 |
3 |
|
P5 |
ABS（PS） |
160 |
90 |
20.5-21.5 |
114 |
90 |
5 |
|
P10 |
ABS（PS） |
200 |
90 |
25 |
134 |
110 |
10 |
|
P15 |
ABS（PS） |
250 |
110 |
33 |
140 |
110 |
20 |
|
DIN125 |
ABS（PS） |
124 |
80 |
21 |
124 |
100 |
3/3.5 |
|
DIN160 |
ABS（PS） |
160 |
100 |
23 |
160 |
128 |
7/8 |
|
DIN200 |
ABS（PS） |
199 |
124 |
23 |
199 |
159 |
15/16 |
